OCS® PULSE
![OTS Pulse Software](https://ml7a33dqytyd.i.optimole.com/cb:XQmh.284bc/w:500/h:401/q:mauto/f:best/http://www.digismartlock.com/wp-content/uploads/2022/08/OTSPulse_OJMAR_3.jpg)
OTS Pulse Software
![electronic door locks](https://ml7a33dqytyd.i.optimole.com/cb:XQmh.284bc/w:500/h:401/q:eco/f:best/http://www.digismartlock.com/wp-content/uploads/2022/08/OTSPulse_OJMAR_2.jpg)
OTS Pulse User app
![OTS Pulse White Colour](https://ml7a33dqytyd.i.optimole.com/cb:XQmh.284bc/w:500/h:401/q:eco/f:best/http://www.digismartlock.com/wp-content/uploads/2022/08/OTSPulse_OJMAR_White.jpg)
OTS Pulse White Colour
![OTS Pulse User App](https://ml7a33dqytyd.i.optimole.com/cb:XQmh.284bc/w:500/h:401/q:eco/f:best/http://www.digismartlock.com/wp-content/uploads/2022/08/OTSPulse_OJMAR_1.jpg)
OTS Pulse User app
![OTS Pulse Programmer](https://ml7a33dqytyd.i.optimole.com/cb:XQmh.284bc/w:500/h:625/q:eco/f:best/http://www.digismartlock.com/wp-content/uploads/2022/08/OTSPulse_OJMAR_Programmer.jpg)
OTS Pulse Programmer
![smart digital locker lock](https://ml7a33dqytyd.i.optimole.com/cb:XQmh.284bc/w:500/h:333/q:eco/f:best/http://www.digismartlock.com/wp-content/uploads/2022/08/OTSPulse_OJMAR_Installation.jpg)
OTS Pulse Real time lock
![OTS Pulse Infoterminal](https://ml7a33dqytyd.i.optimole.com/cb:XQmh.284bc/w:500/h:400/q:eco/f:best/http://www.digismartlock.com/wp-content/uploads/2022/08/OTSPulse_OJMAR_Infoterminal.jpg)
OTS Pulse Infoterminal
![OTS Pulse Gateway](https://ml7a33dqytyd.i.optimole.com/cb:XQmh.284bc/w:500/h:354/q:eco/f:best/http://www.digismartlock.com/wp-content/uploads/2022/08/OTSPulse_OJMAR_Gateway.jpg)
OTS Pulse Gateway
![OTS Pulse Black and Green](https://ml7a33dqytyd.i.optimole.com/cb:XQmh.284bc/w:500/h:401/q:eco/f:best/http://www.digismartlock.com/wp-content/uploads/2022/08/OTSPulse_OJMAR_BlackandGreen.jpg)

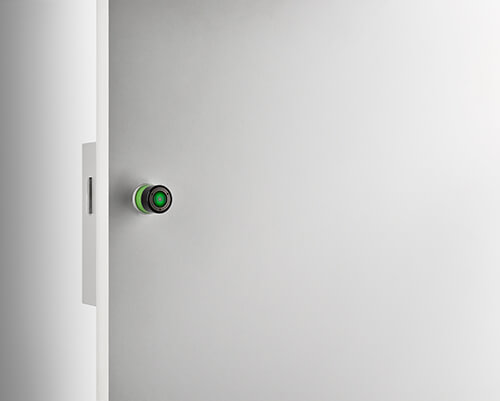

OTS Pulse Black/Green Colour
- Features
- Technical Specs
OTS® PULSE, the smart lock solution, that will provide you with:
· Real-time analytics
· Space optimisation via heat mapping
· Unrivalled flexibility, multiple user modes
· Cloud-based remote facility management
· Multi-technology platforms: RFID and BLE for mobile use
· Lockers on arrival booking functionality via Ojmar app
· API ready
All with no wires, plug and play, and an extraordinary battery life.
—
Multitechnology
· ISO/IEC 14443
· Mifare Classic 1K/4K 4B and 7B UID
· Mifare Ultralight and Ultralight C
· Mifare DESFire EV1 & EV2
· ISO 15693
· HID® iClass
· HID® Seos
· Bluetooth®
· NFC
—
Ciber Security
· Encrypted communications.
·The web connection is encrypted via Https with an SSL certificate.
·Each incoming connection uses its own dynamically encrypted protocol.
—
Extraordinary battery life
· Up to 10 years
—
Enhanced automatic data transfer
· Battery status
· Lock status
· Traceability & lock use: time, user
—
Intelligent Maintenance & Backups
· Battery & lock status.
· Events log.
· Keeps the configuration after battery change.
· Low battery indicator.
· FW update via network.
· Emergency power supply from the knob.
· Configurable usage reports.
· Offline mode in case of gateway failure: Data storage and automatic sending after network recovery.
—
Configuration
· Fully configurable by the end user
· Automatic connection of the locks to the Ojmar´s cloud software.
· Real-time configuration and assignment of access permissions via Ojmar´s cloud software.
· Integration with third parties software via SDK
· Automatic openings
—
Credentials
· RFID Bracelets
· RFID Cards
· Smartphone Credentials: App
—
Power supply
·4 alkaline batteries VARTA Type AA
—
Battery life
·Up to 10 years.
—
Low battery detection
·Automatically notified in real time.
—
Comunication interface
·Protocol 2.4 GHz propietary (IEEE 802.15.4)
—
Temperature range
-10ºC/ 42ºC
—
Protection against solid and liquid bodies
· IP55.
—
Protection against external impact
· IK7.
—
Protection against internal impact
· IK9.
—
Display led
· LED (Red, amber & green)
—
Gateway
· Protocol 2.4 GHz propietary (IEEE 802.15.4)
· Nº of maximum connections up to 500 (depending on the layout of the installation)
· Reading distance Up to 50m (depending on the layout of the installation)
· Communication standard LAN Ethernet RJ-45, USB
· Ethernet DHCP
· Power Supply 8-30VDC Output, 12W min.
· Supports IEEE 802.11 PoE
